Winsmith Gear Reducer Model 6MSFD with Baldor CDP3445 Motor Attached - $1,600 (Buffalo, NY)

Winsmith Gear Reducer Model 6MSFD with Baldor CDP3445 Motor Attached 1 thumbnail

condition: excellent

make / manufacturer: Winsmith

model name / number: 6MSFD

QR Code Link to This Post

Winsmith Gear Reducer Model 6MSFD with Baldor CDP3445 Motor Attached 1 HP.90 VDC Used

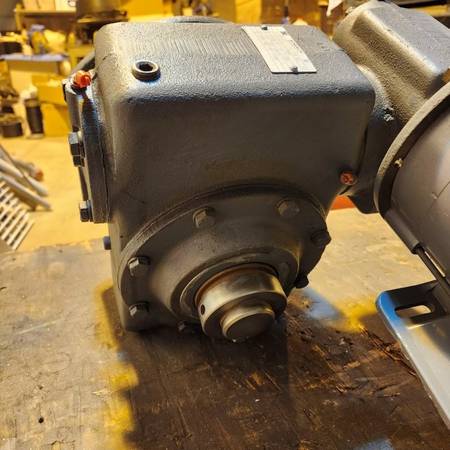

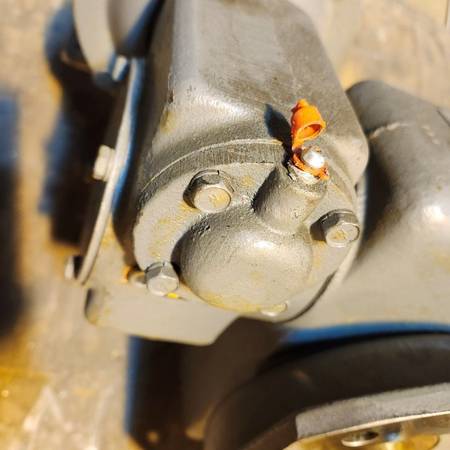

Make of Worm Gear Reducer: Winsmith
Model: 6MSFD, P/N: 006MSFD2128010
Date: 10-01, Input Rpm: 1800, Service Factor: 1.0
Input HP: Up to 1.66 HP, Ratio: 100
Output Torque: 3855, Mobil Lube: AGMA 8
For Temperatures: 51-110 Degree F

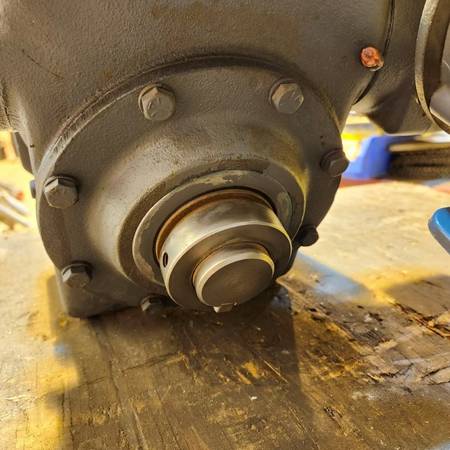

Large Side Shaft Size: 1-3/8" Diameter with 3/8" Keyway x 4-1/2" Long

Electrical Motor Attached:

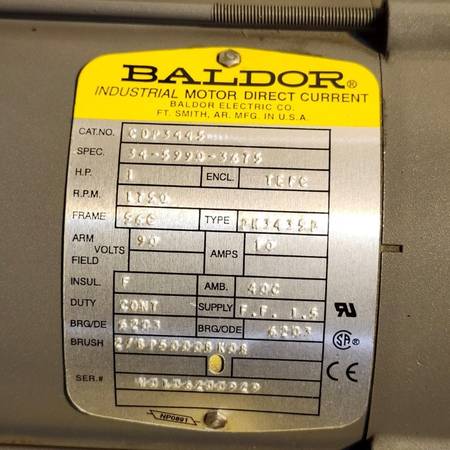

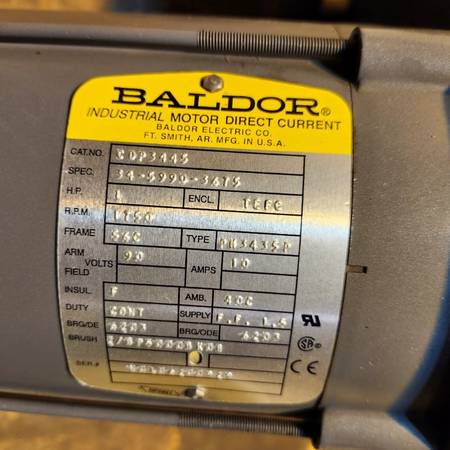

Baldor Catalog # CDP3445, Spec: show contact info
HP: 1 Hp ( .75 Kw ), Volts: 90 Volts DC
Amps: 10 Amps, Rpm: 1750, Insulation Code: F
Ambient Temperature: 40 Degrees C, Duty: Continuous, Supply: Form Factor: 1.5
Enclosure: TEFC ( Totally Enclosed, Fan Cooled ), Frame: 56C, Type: PN3435P
Shaft Size: 5/8"
Bearing: Drive End: #6203, Bearing: Opposite End: 6203
Brush: 2 pcs. # BP50008K08
Safety Standards: RJ, SA, & CE
Condition: Both: Used, Just out of Service, EXCELLENT.

Located in Buffalo, NY

** For more information call Tim @ show contact info . We do not accept text messages or emails due to scams. Thank you. **

Our Ref: HIGH BAY , 01-10-26
