Sansui Model 2000 Stereo receiver ONE OWNER !!!! - $80 (north buffalo)

Sansui Model 2000 Stereo receiver ONE OWNER !!!! 1

Sansui Model 2000 Stereo receiver ONE OWNER !!!! 1 thumbnail

Hertel Ave near Parkside Ave

google map

condition: good

make / manufacturer: Sansui

model name / number: Model 2000

QR Code Link to This Post

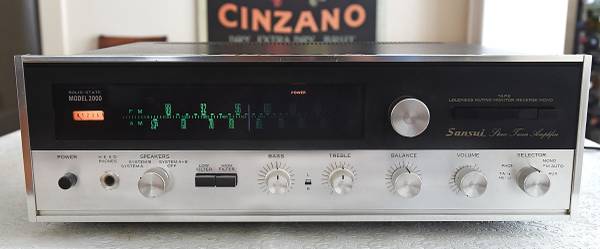

For your consideration: A one owner Sansui Model 2000 stereo receiver. This is a vintage 1969 solid-state stereo receiver is cosmetically in near perfect condition both inside and out. This unit works perfectly on the left channel but the right channel blows the protection fuse. Two of the 4 fuse bulbs for the tuner lights are out. You can still read the whole tuner grid with no problem they are very inexpensive on line and can be replaced without much of a hassle. Most likely not a big monitary commitment. This iconic unit is known for its exceptional tube-like sound quality, strong tuner, nice phono section and build quality to last a lifetime. This unit is a tank! Key features include individual bass and treble controls, a loudness function, low and high filters, and phono inputs, making it a superb receiver, especially for vinyl. It offers excellent RF protection and a high-quality tuner, making it a well-regarded and desirable piece of vintage audio gear with superb warm analog sound. More that well worth the resto. $120 or Best offer.
SPECS:

General
• Manufacturer: Sansui
• Model: 2000
• Type: Receiver
• Years of manufacture: 1967 - 1969
• Made in: Japan
• Color: silver, housing walnut
• Remote control: no
• Power consumption:
• Dimensions: 415 x 124 x 331 mm (WxHxD).
• Weight: 12 kg
• Original price approx.: 1'595 DM
• Surcharge housing walnut: 115 DM
• Surcharge housing sanding varnish white: 125 DM
 Connections
• Number of inputs:
◦ Phono MM: 2.2 mV
◦ Tape Head: 2,0 mV
◦ Tape Play: 150 mV / 50 kOhm
◦ Tape Play DIN: 150 mV / 50 kOhm
Aux: 150 mV / 50 kOhm
◦ Antenna (FM: 75, 300 Ohm, AM).
• Number of outputs:
◦ Tape Rec: 200 mV
Tape Rec DIN: 35 mV
◦ Headphones (6,3mm jack)
◦ 2 pairs of loudspeakers
 Technical Data
Amplifier
• Continuous power (at distortion):
◦ 8 Ohm:
◦ 4 Ohm: 2x 36 W
• Dynamic power:
◦ 8 Ohm:
◦ 4 Ohm: 2x 50 W
• Total harmonic distortion: < 0.8
• Attenuation factor: 24 (at 8 Ohm)
• Frequency response:
◦ Phono: 30 - 15,000 Hz, ± 0.2 dB
◦ High Level: 20 - 40,000 Hz (+0 dB, -1 dB)
• Signal-to-noise ratio:
◦ Phono: 70 dB
High Level: 75 dB
• Tone control:
◦ Bass at 100 Hz: ± 10 dB
Treble at 10 kHz: ± 10 dB
• Loudness: yes, +6 dB at 100 Hz, +3 dB at 10 kHz
• Low Filter: yes, 6 dB / octave at 30 Hz
• High Filter: yes, 6 dB / octave at 8 kHz
• Mute: yes
 Tuner
• Reception: FM/MW
• Frequencies:
◦ FM: 88 - 108 MHz
◦ MW: 535 - 1605 KHz
• Input sensitivity:
◦ FM: 1.8µV
◦ MW: 15µV
• Frequency response: 30 - 15,000 Hz (+0.2/-0.5 dB)
• Distortion factor:
◦ FM (1 kHz): < 0.10% (mono), < 0.15% (stereo).
• Signal-to-noise ratio:
◦ FM (65 dBf): 75 dB (mono), 66 dB (stereo).
◦ MW: 55 dB
• Channel separation: 35 dB (1 kHz)
• selectivity: 50 dB
• Co-wave selection: 2.7 dB
• Spurious wave selection:
◦ FM: 80 dB
• Mirror frequency attenuation:
◦ FM: 90 dB
MW: 40 dB IF attenuation:
◦ FM: 110 dB
◦ MW: 40 dB
• AM suppression: 55 dB
 Special Features
• Mono / Stereo switch
